Brumleve Reinforced Steel Tarp Bow with Elbows **

Product Description

$ 72.70

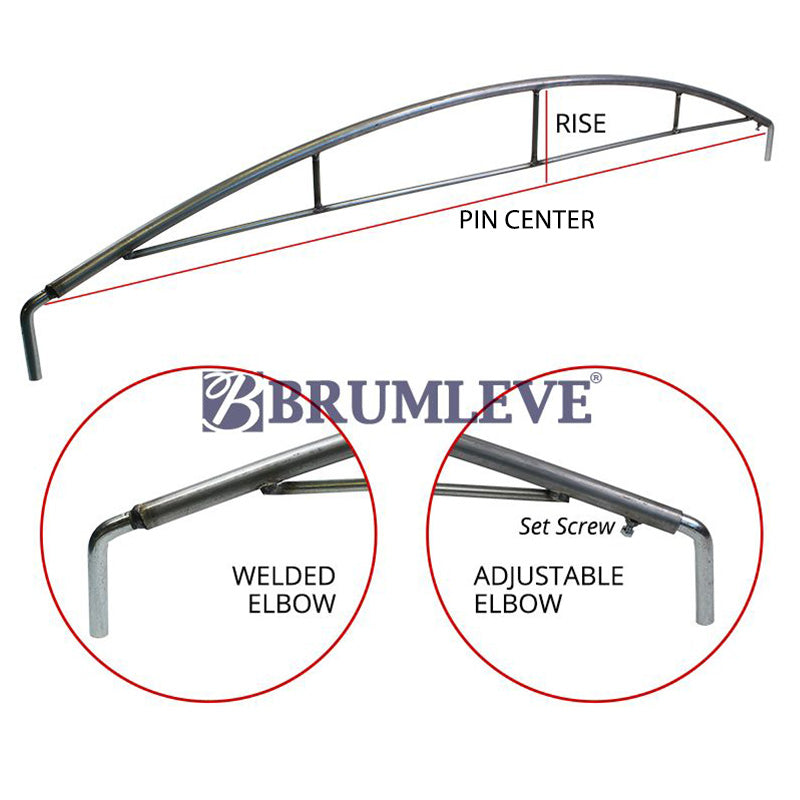

Our best selling Brumleve® Reinforced Steel Tarp Bow with Elbows is built in-house and is one of our strongest tarp bows available. Made with 12 gauge galvanized steel tube, this tarp bow includes welded reinforcement struts for tougher than normal working environments. Designed to be adjustable in order to properly fit varying width trailers, the tarp bow easily slides in and out of the bow brackets allowing for quick install and removal without tools. See our chart below to choose the correct tarp bow for your trailer.

Pin Centers	Use Case	Notes
84-90 inch	96 inch wide trailers with brackets mounted on the inside rails (typically 84-86 inches on center).	Choose between 10 and 12 inch rise depending on the how tall you want the arc of your tarp to be.
90-96 inch	96 inch wide trailers with brackets mounted on the top rails (typically 90-92 inches on center) OR 102 inch wide trailers with brackets mounted on the inside rails (typically 90-92 inches on center).	Choose between 10 and 12 inch rise depending on the how tall you want the arc of your tarp to be.
92-104 inch	102 inch wide trailers with brackets mounted on the top rails (typically 96-98 inches on center).	Choose between 10 and 12 inch rise depending on the how tall you want the arc of your tarp to be.

INCLUDED

(1) Brumleve® Reinforced Steel Tarp Bow
(2) Elbows/Bow Shanks shipped unattached

ADJUSTABLE WIDTH

A Set Screw is installed on one end to allow for width adjustments. This is useful if your trailer isn't exactly 96 inches wide.

INSTALL INSTRUCTIONS

Weld one elbow/shank on the end without the Set Screw. Insert at least 4 inches of the elbow inside the tarp bow for strength support.
Insert the other elbow and loosen the Set Screw to adjust the width so the tarp bow fits securely inside the brackets mounted to the inside of the trailer.
Once it is properly fitted inside the brackets, tighten the Set Screw to secure the length.

Please note our tarp bows do not ship with the elbow welded in. The images are only used to show what the finished tarp bow should look like when assembled.

COMPARE ALL TARP BOWS

Type	Use Case	Notes
Standard	96 and 102 inch wide dump trailers, farm beds, and grain trailers.	Our most economical option, the Standard tarp bows are best used on trailers hauling part-time and loading only small sized grain, rock, or sand.
Heavy Duty	96 and 102 inch wide dump trailers, farm beds, and grain trailers.	The most popular option, our Heavy Duty tarp bows provide the perfect combo of price and quality. Mainly used on trailers that haul full-time and load small to medium sized rock.
Reinforced	96 and 102 inch wide grain trailers and 96 to 144 inch wide grain carts and gravity wagons. Also compatible with 96 and 102 inch wide dump trailers and farm beds.	Our Reinforced tarp bow is popular for trailers that haul grain full-time.
KwikFlex® Nylon	96 and 102 inch wide dump trailers and dump trucks.	Our only flexible tarp bow option without sacrificing strength, the KwikFlex® tarp bow is built using a solid nylon rod. Designed to bend and spring back when hit, these tarp bows work perfect for dump trailers hauling big sized rock or concrete chunks. They also withstand accidental hits by loaders.
Super Duty	96 and 102 inch wide dump trailers and dump trucks.	Our strongest option available, the Super Duty tarp bow is built using Schedule 80 pipe and primarily used in trailers that haul big sized rock and concrete chunks.
